Compact 50 Fleet

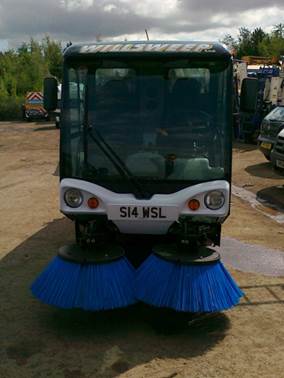

compact4

Our Compact 50 is for usage with contractors on low height clearance or awkward access areas, with its standard 3.5 tonne is the most versatile urban/precinct sweeper in the world. Built for simplicity, performance and operator comfort, the Compact 50 gives you unbeatable power and productivity in a small, compact machine. Small dimensions and a short wheelbase allow excellent movement around street furniture, parked cars and other obstacles giving you maximum productivity and clearance efficiency. The 4 tonnes GVM (option 3.5t) and a large footprint also make the Compact 50 ideally suited for use on paving and other delicate surfaces.

High Performance:
The unique sweep gear configuration and reverse sweeping feature ensures the efficient clearance of debris from beneath cars, benches and other obstacles, allowing complete clearance of 90° corners, blind alleys and dead ends. Strong suction performance at low engine speeds significantly reduces wear on key components and maximises fuel efficiency, whilst speeds of up to 50km/h maximise the productive time on-site.
Low Height Compact 50: In order to meet with customer demand a special low-height version of the Compact 50 is now available from Willsweep. The 1.9m overall height is aimed at giving operators the ability to sweep pathways, underpasses, cycle-ways and multi-storey car parks with ease. Street Compact 50: The Compact 50 can be quickly transformed into a dedicated 150 bar (2200psi) high-pressure street-washing vehicle complete with an operator controlled spray bar and up to 1400 litres of water for prolonged cleaning duties.

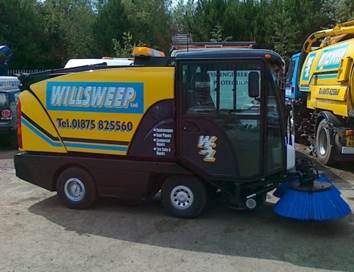

compact3

DetailSpecification
Overall Length4.1 m
Overall Width1.3 m
Overall Height1.945 m
Gross Vehicle Weight4 t (option 3.5t)
Fuel Capacity51 litres
Hopper Capacity1.8 m3 (voided)
Payload1.3 t (nominal)
Water Tank Capacity1. 157 L clean water 2. 250 L recirculation water
Water Pressure9L/min @ 68 bar
Transit Speed Max50km/h
Flow Rate540 litres ph
